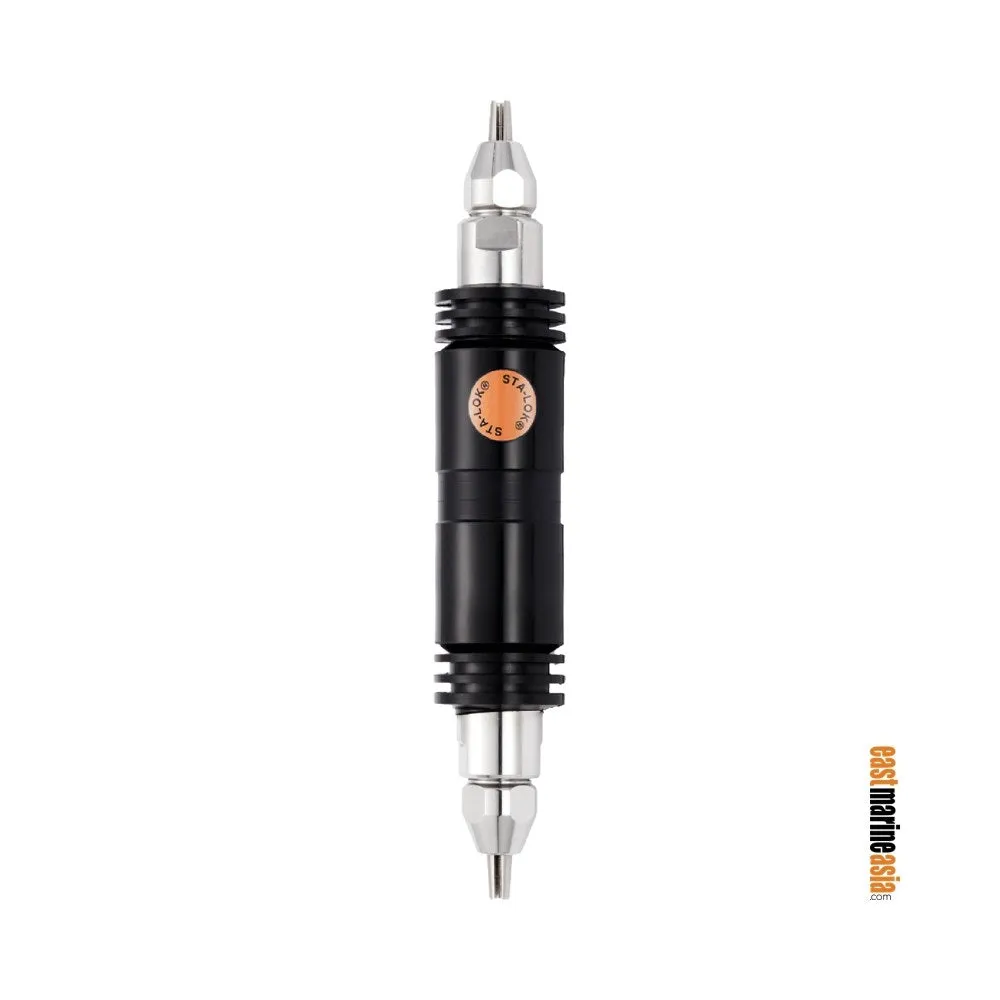

Sta-Lok Swageless Insulator (Terminal to Terminal)

• Use on standing rigging to provide radio antenna
• Guaranteed stronger than the wire rope
• Incorporates Sta-Lok Self fit termination
• Quick and easy to install
• Packed for 1?19 wire as standard
• Manufactured from high specification 316 stainless steel
• Different wedges are available to terminate 7 strand and compacted strand wire ropes

Electrical Properties

Impedance Measurement @15MHz, Capacitance 16pF Resistance 400K, D.C.Leakage Resistance @ 30Kv, Greater than 10 G Ohms.

Voltage Proof Test - Withstands 30 Kv applied for 2 hours without breakdown.  No change in 15 MHz impedance after voltage proof test.
