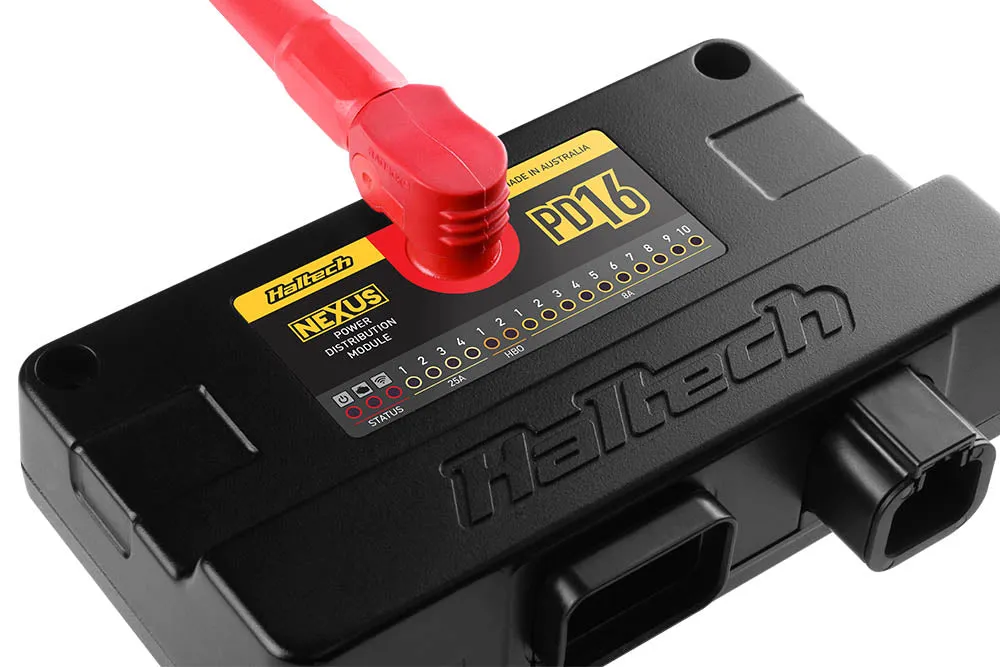

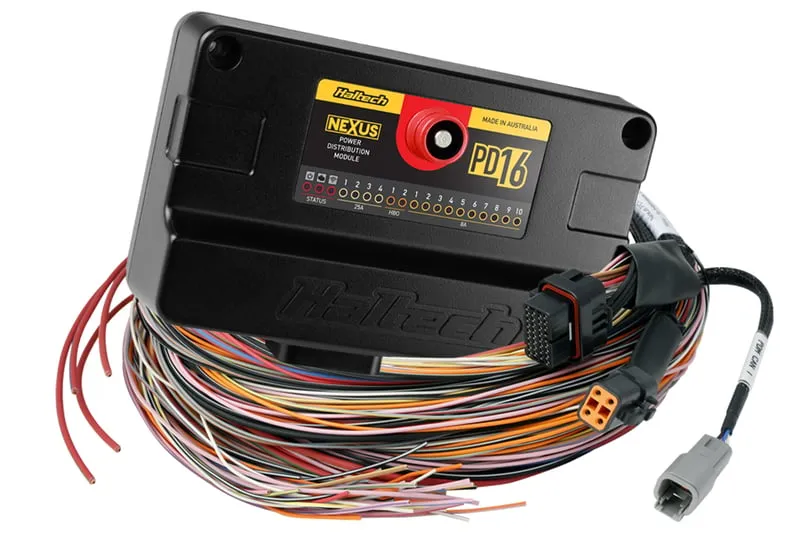

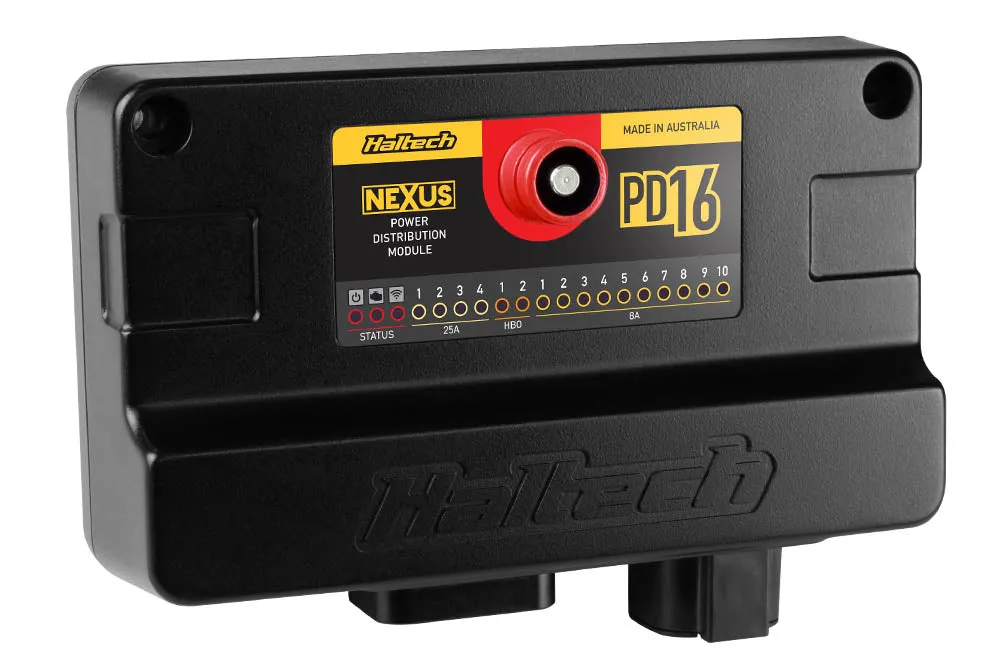

Name: Haltech PD16 Power Distribution Module
SKU: 129867

IMPORTANT EMISSIONS NOTICE:
In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Haltech products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website for state by state details in the USA). It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Haltech product.

PRODUCT OVERVIEW

Boasting new, innovative yet user-friendly technology, Haltech’s PD16 sets a new market standard for power distribution systems. Designed to integrate seamlessly into your existing Haltech Elite or Nexus engine management system, the PD16 delivers safe, dependable power delivery to your vehicle. A Power Distribution Module (like the new Haltech PD16), is just like a mechanical fuse and relay box, but smarter. Just like a fuse block, it has a main power input and outputs that turn devices like fans and pumps on or off. But unlike your conventional fuse relay block, there are no mechanical contacts and no physical fuses to blow. With the PD16, all of the on and off switching is done with solid-state drivers and fuse currents are set digitally by the end-user. So in essence, the PD-16 replaces your mechanical relays and fuses.

10 x High Side Outputs
2 x Half Bridge Outputs
4 x 25A High Current Outputs
8 x Inputs Dedicated Ignition Switch Input
Power for Ignition Switch
Integrated into Haltech CAN Bus Network
5V Sensor Supply / Sensor Ground
120A SurLok Connector

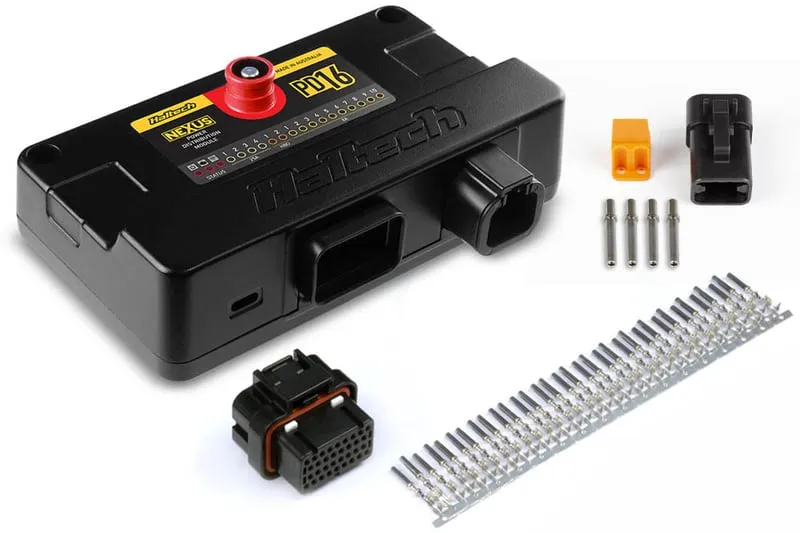

WHAT'S IN THE BOX: 1 x Haltech PD16, 1 x SurLok 120A Connector Red, 1 x USB Key, 1 x USB-C Cable, 1 x USB-C Dust Cap, 1 x Haltech Fabric Keytag, 1 x Quick Start Guide Booklet, Mounting Hardware - (2 x M5 Bolts and Nuts)

COMPATIBLE WITH: Haltech Nexus or Elite Series ECUs
