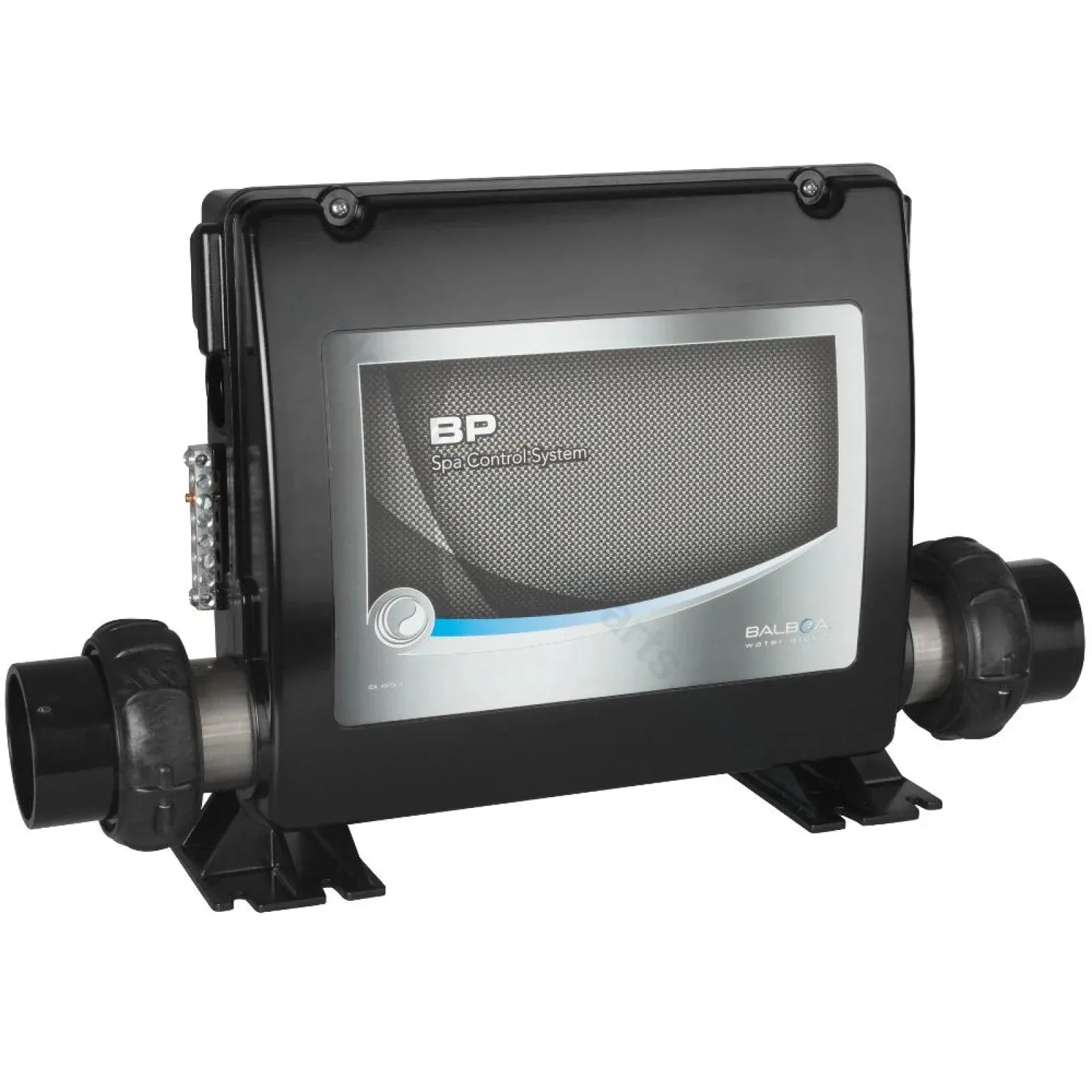

Balboa BP601. Supercedes Controllers. The BP601 G1/G2/G3 versions replaces all BP 501 & BP 601 controllers. Can also be used to replace many BP21 and other customer controllers made by Balboa.

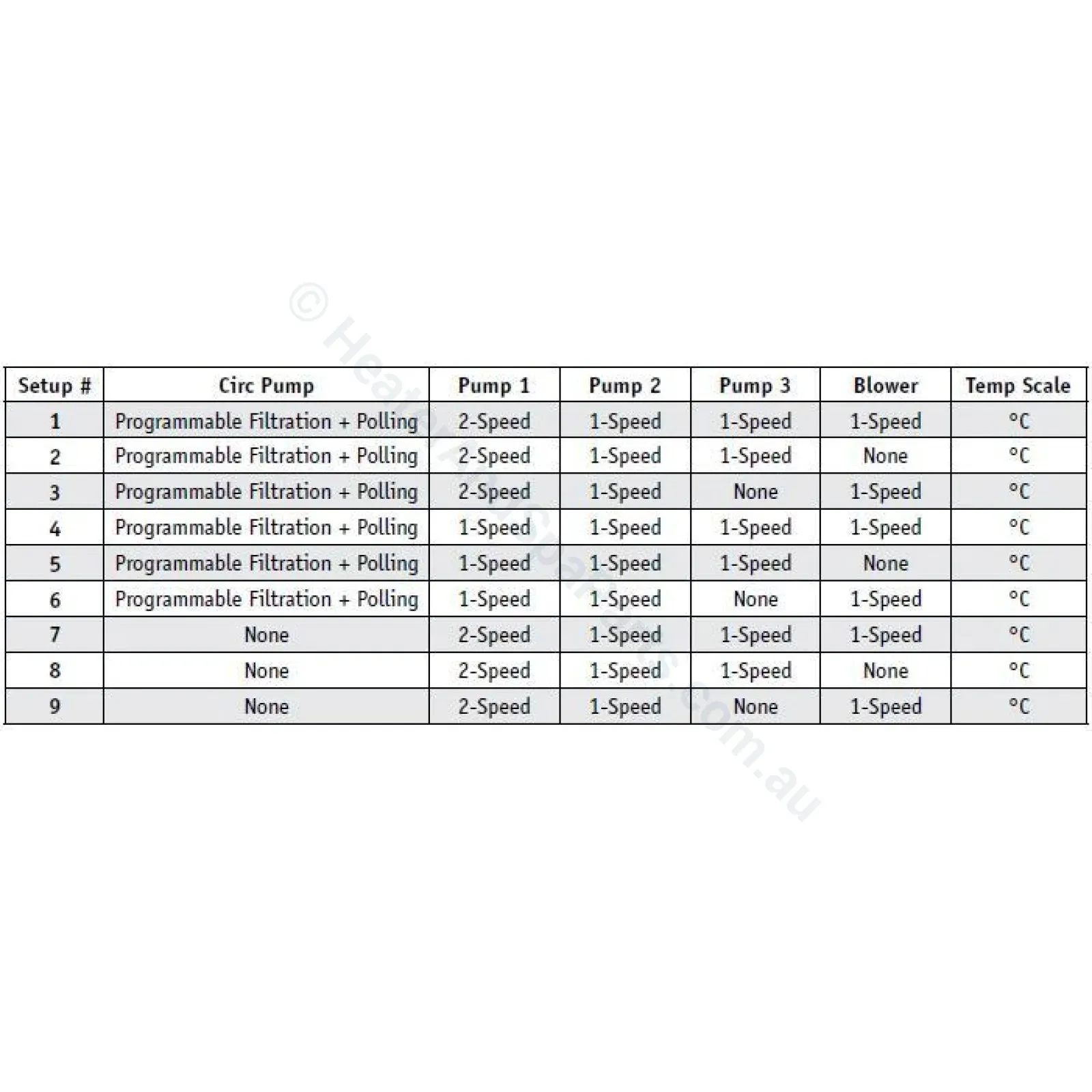

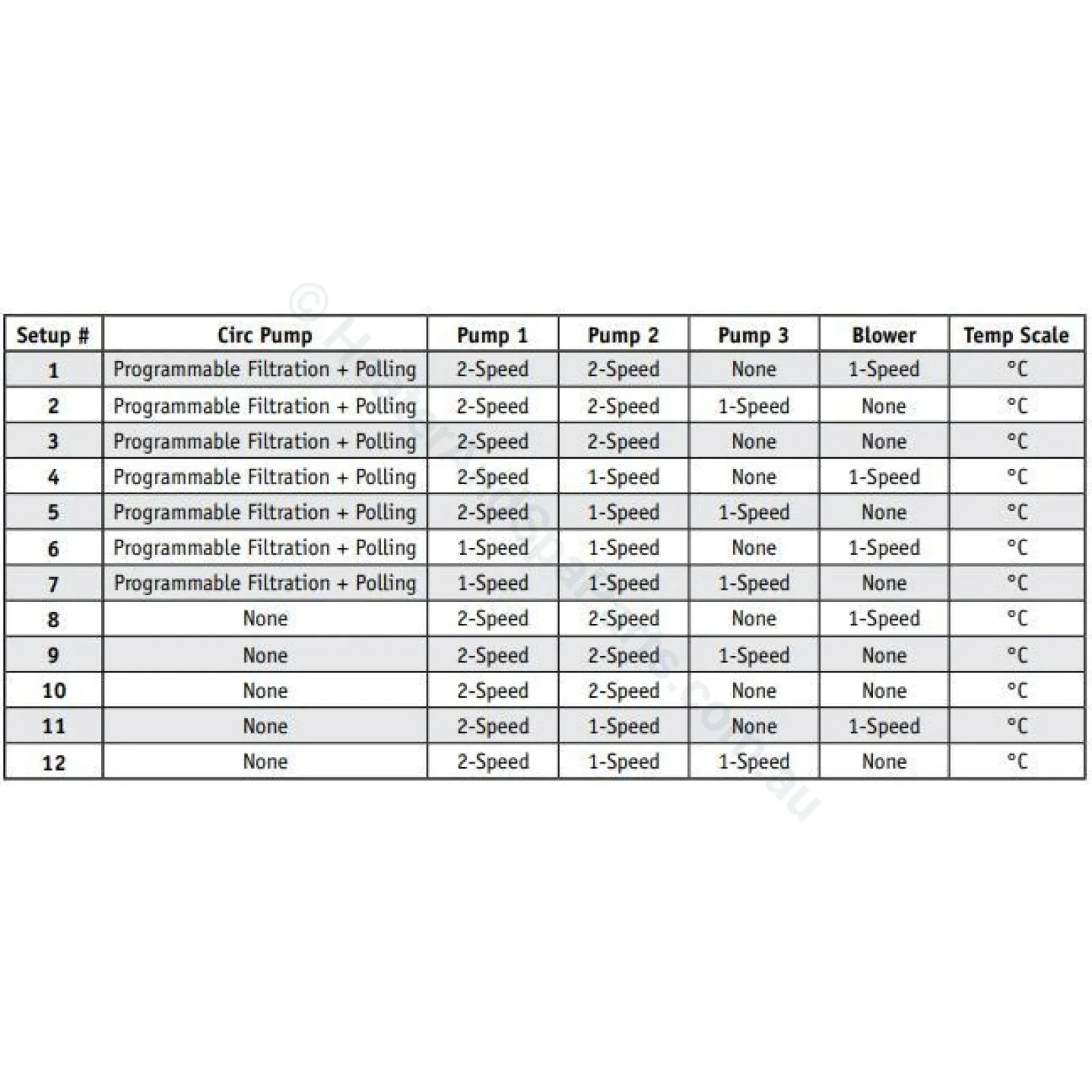

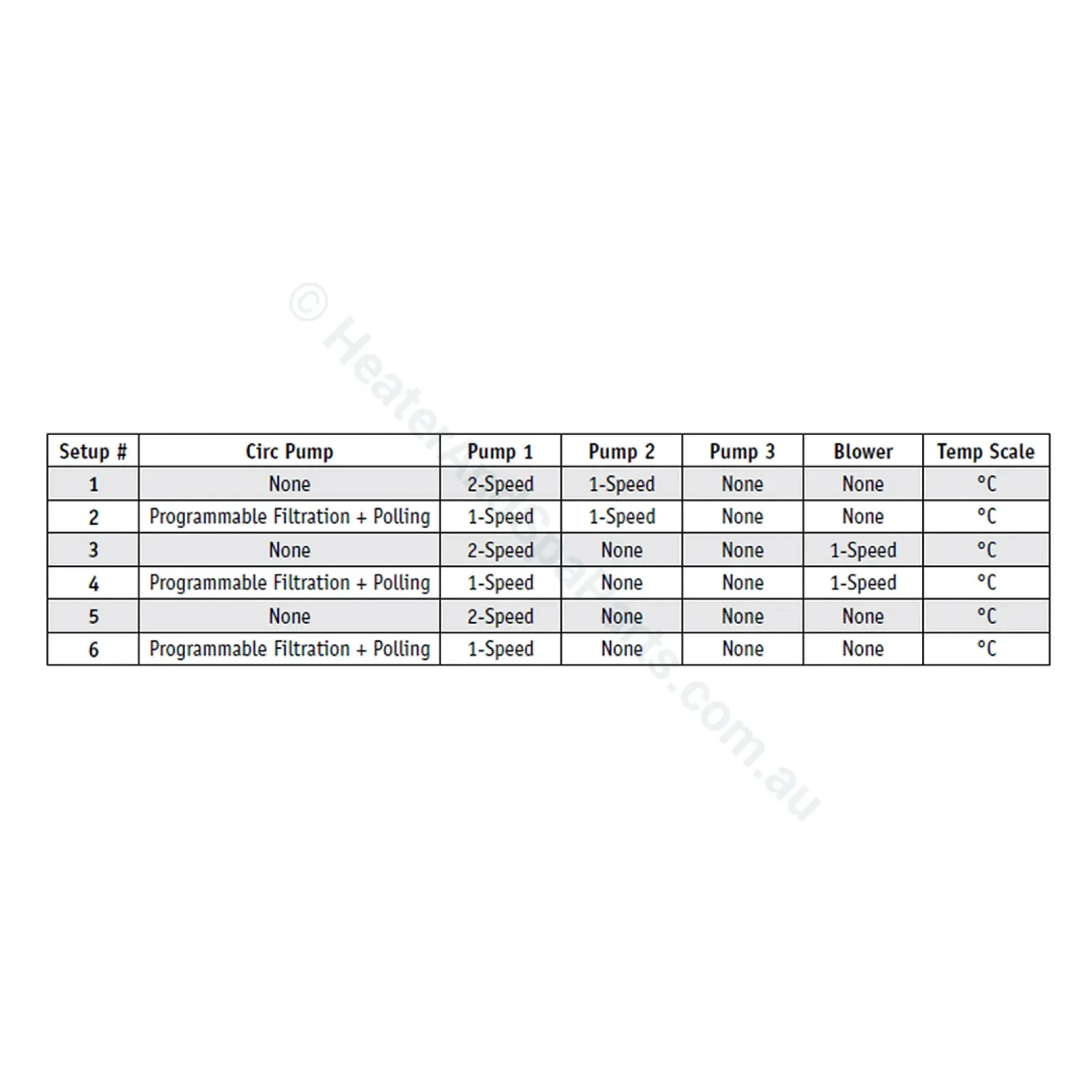

See the programming table for full details of what each model can cater to. Selecting a model in the variants section will change to it's programming table.
Does not come with touchpad. , , , , touchpads can be used with this controller.
BP601 G1:
- Touchpads: / / are ideal touchpads, but other TP series can be used.
- Technical Manual / Instruction / Info:
BP601:
- Touchpads: is an ideal touchpad, but other TP series can be used.
- Technical Manual / Instruction / Info:
The BP601G2 is the best replacement. Please note that if you have a , you will need to upgrade to a as well, in most cases.
BP601 G3:
- Touchpads: are ideal touchpads, but other TP series can be used.
- Technical Manual / Instruction / Info:
Specifications:
- 490mm x 270mm x 90mm
- Heater: 3kW (M7)
- WiFi:
- Overheat Fault Detection for Runaway Pumps / Stuck Relays
- Quick heater connect power plug
- Based on Balboa's most popular models
- Press & Hold Buttons for ease of use
Balboa listened and added the new BP501/601 to the popular BP Series of spa controls. Based on the BP500/600, this new model can run up to a 5.5 kW heater (60Hz systems), supports an expander card to run another pump and has multiple panel jacks on the main board.
Includes Balboa's patented overheat Fault Detection for runaway pumps or stuck relays. The new M7 Plus software design incorporates patented technology using a microprocessor to intelligently monitor the hot tub water temperature and detect a runaway pump or stuck relays. If detected, the system will automatically attempt to shut the power off to the tub to prevent any overheating by trying to trip the GFCI in the circuit (per electrical codes). (BP501 only).

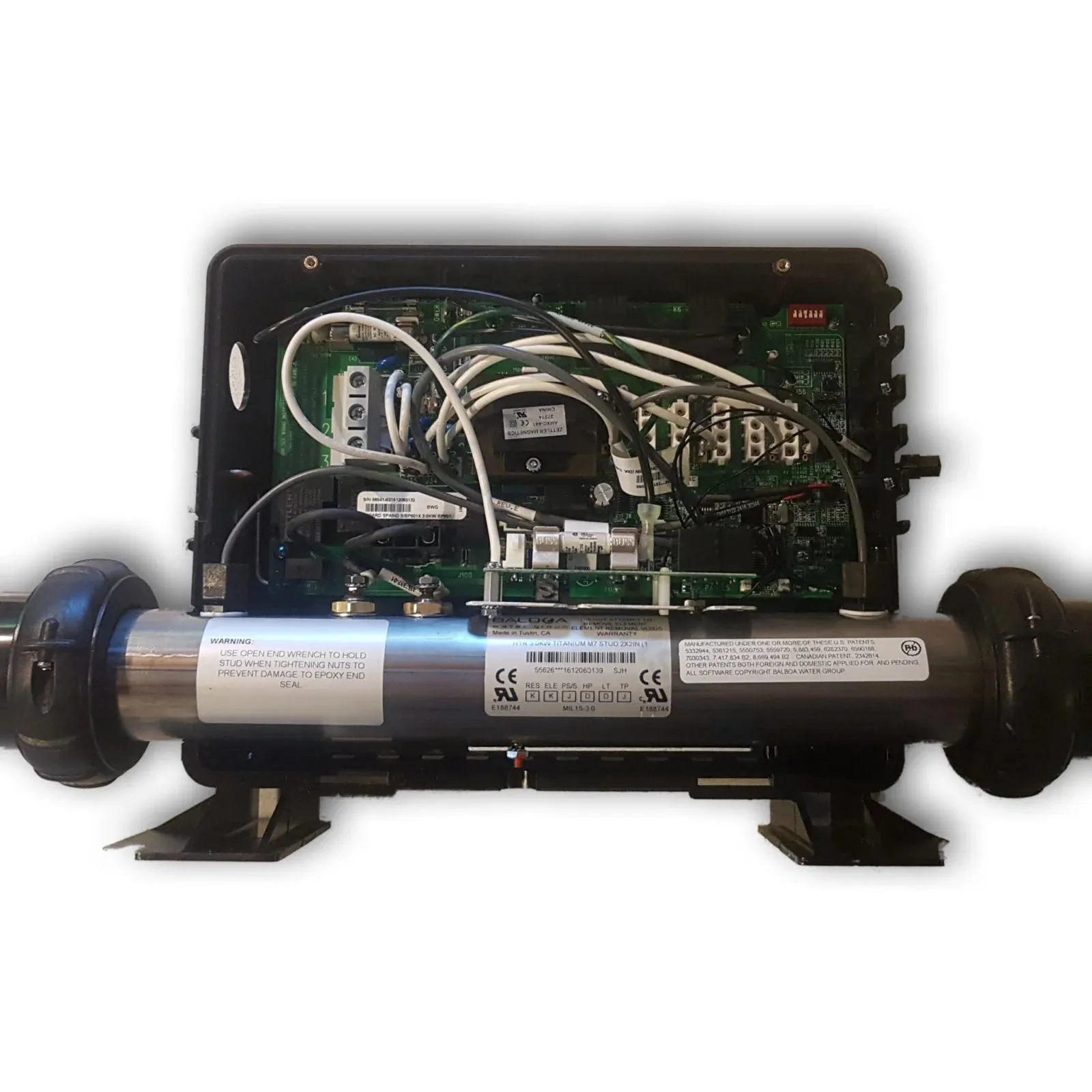

For serviceability, the new BP501/BP601 systems include a new single board configuration and have Balboa’s new quick connect heater system – no more removing heater straps, just unplug the old heater and plug in a new one.
Part Numbers: BP6013G1 BP6013G2 BP6013G3 ACONBP6013
